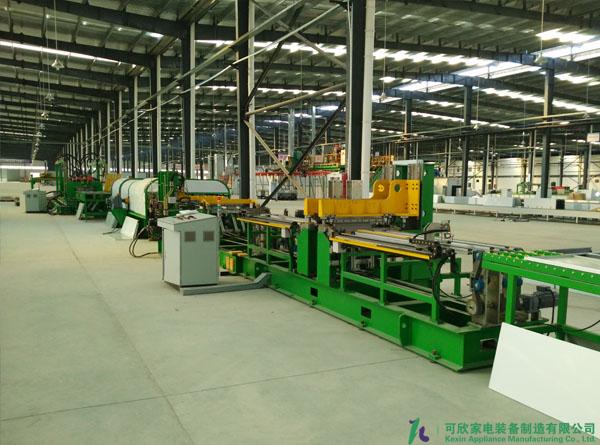

Refrigerator U shell servo line

Line dimension:L:48000mm,W:3500mm

Working height:900mm

Dimension of product:Depth:380~600mm,Width:400~600mm,Height:470~2000mm

Sheet material:0.4~0.5mm（0.45mm pre-coated sheet)

Cycle time:≤25s/pcs

Time of changing mold:15mins~20mins(10 mins if depth and width is same)

Stations:8

Total power capacity:~45Kw,380V,50Hz

Air pressure:0.4~0.6Mpa

The molding size is according to the requirements of the drawing：（The limit deviation accuracy of unmarked tolerance size is according to GB1804-m.）
